Servicebio PCR Workflow

Image (9)

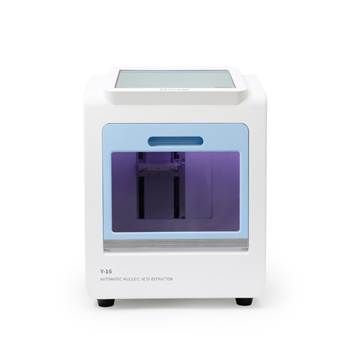

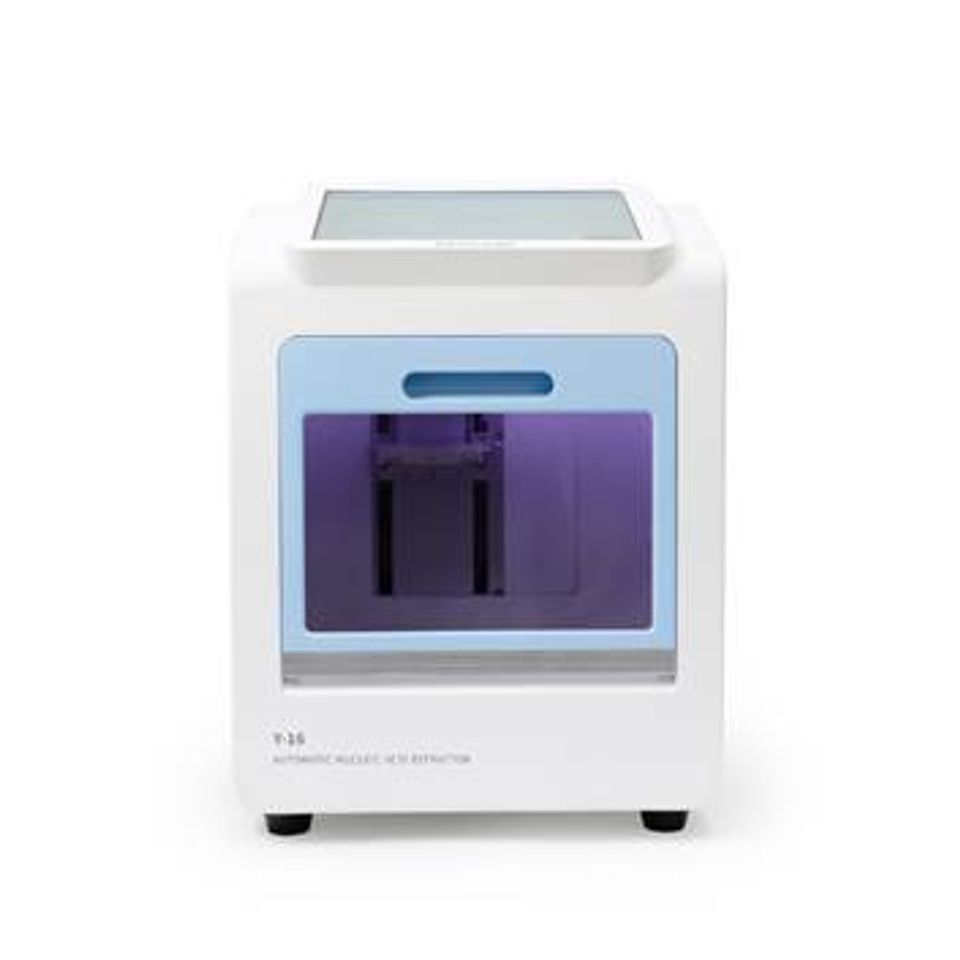

Automatic Nucleic Acid Extractor

A fully automated nucleic acid extraction system compatible with a wide range of sample types. The instrument can process up to 16 samples simultaneously in a single run and delivers a simple, rapid, and high-quality extraction workflow.

Cat. No.: BE-Y-16

Brand: Servicebio
Image (11)
Image (10)
Instrument Introduction

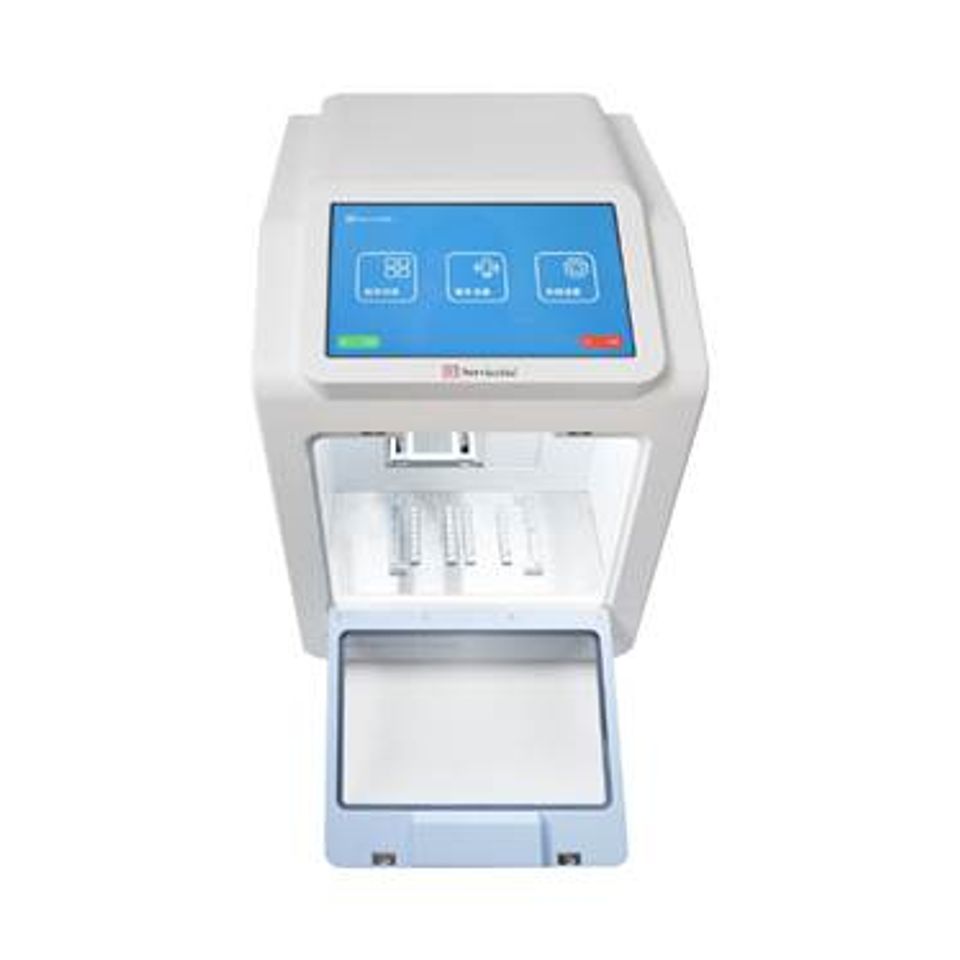

The Nucleic Acid Extractor BE-Y-16 is engineered to efficiently extract nucleic acids from a variety of sample types. It supports the simultaneous processing of up to 16 samples per run, providing a streamlined, fast, and high-quality extraction process with no visible magnetic bead residue.

When paired with the MagBind Animal Tissue Total RNA Extraction Kit (Prepackaged 48T) BE-G3690-48T and the MagBind Animal Tissue Genomic DNA Extraction Kit (Prepackaged 48T) BE-G3691-48T, the BE-Y-16 significantly enhances extraction efficiency and yield. Additionally, when used in combination with Servicebio’s full line of pre-packaged nucleic acid extraction reagents, the system enables automated extraction across a wide variety of sample types—offering a convenient, user-friendly solution that consistently delivers superior experimental results.

Product Parameters

Cat. No. BE-Y-16BE-Y-16
Principle Magnetic Bead Method
Working Volume 20μL~1mL
Sample Throughput 1–16 samples
Bead Recovery Rate 99%
Consumables 96-well Deep-well Plate
Heating Temperature Room Temp.~120°C
Interface 10.1-inch Color Touchscreen
Operating Ambient Temperature 10°C ~40°C
Relative Humidity 10%~90%
User Interface 10.1-inch Color Touchscreen
Built-in Programs Can store 500 programs
Program Management Create, Edit, Modify, Delete
Network Wireless Wi-Fi Function
Sterilization/Disinfection UV Sterilization
Rated Power 450W
Power Supply AC100~240V (±10%), 50Hz/60Hz±1Hz
Dimensions 385×328×466mm
Weight 18.75Kg

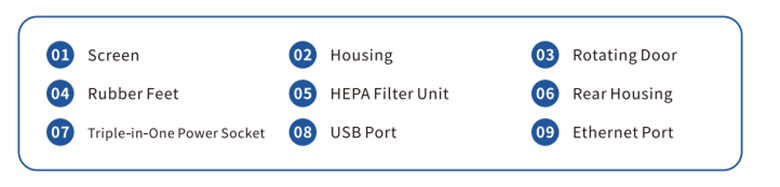

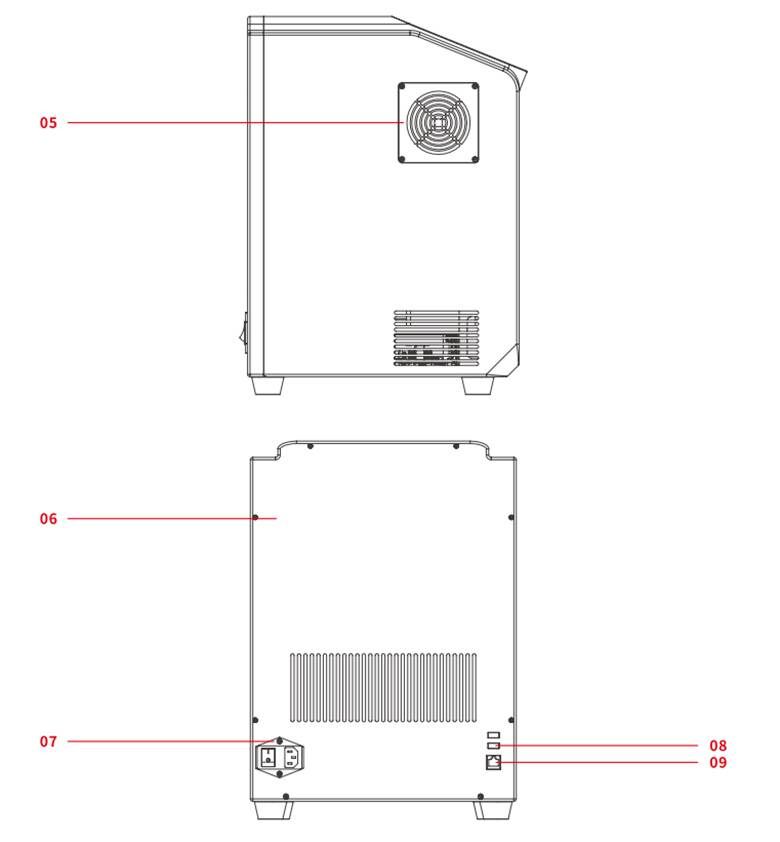

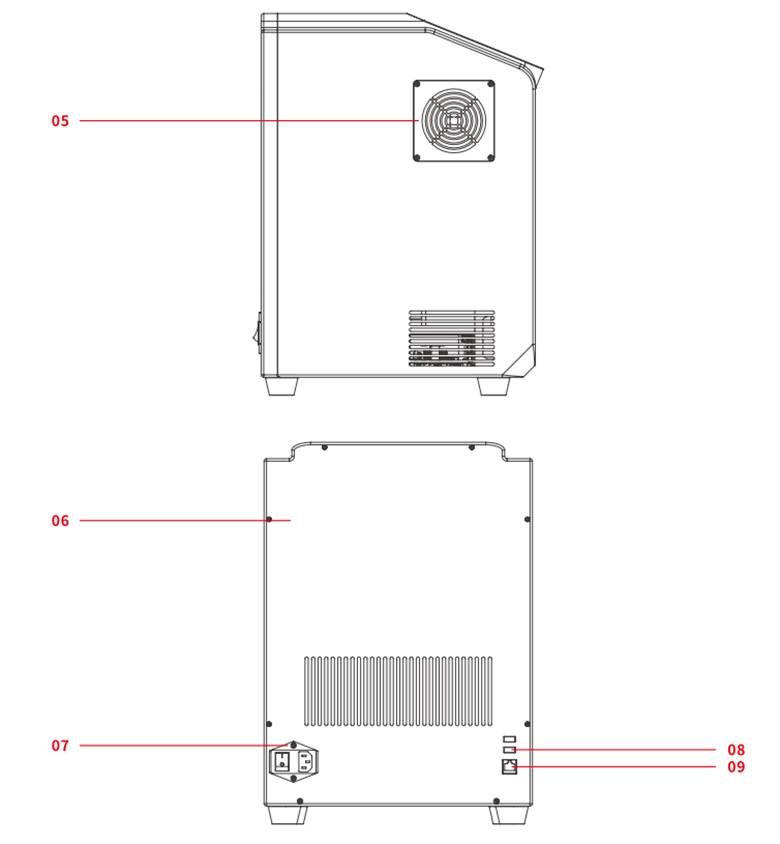

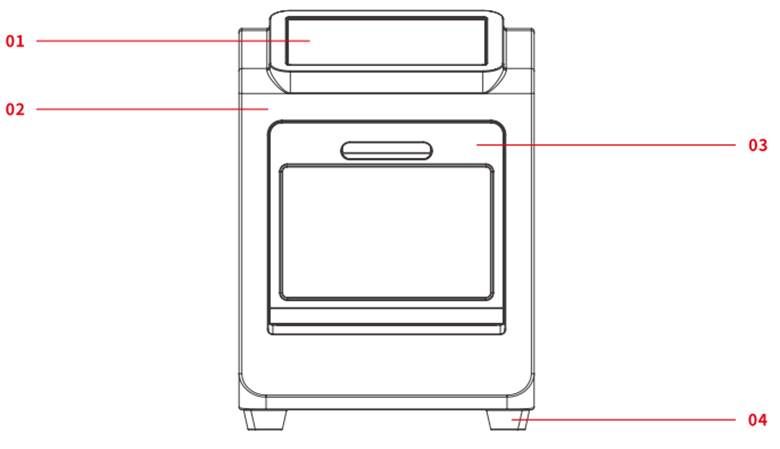

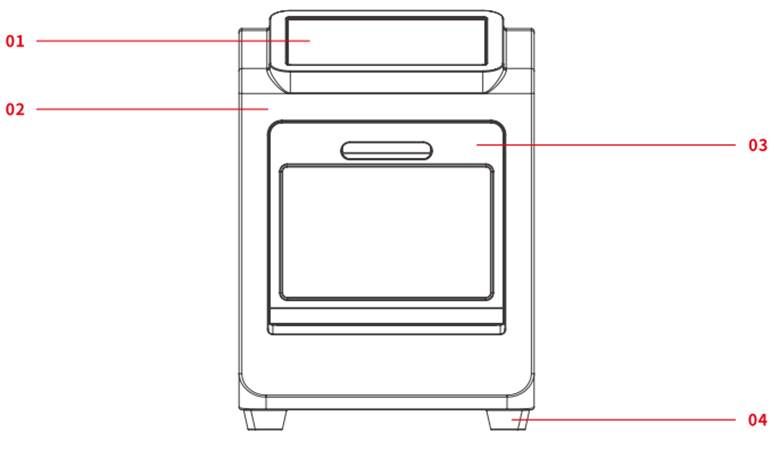

Product Structure
Image (12)
Image (13)
Image (14)
Image (15)

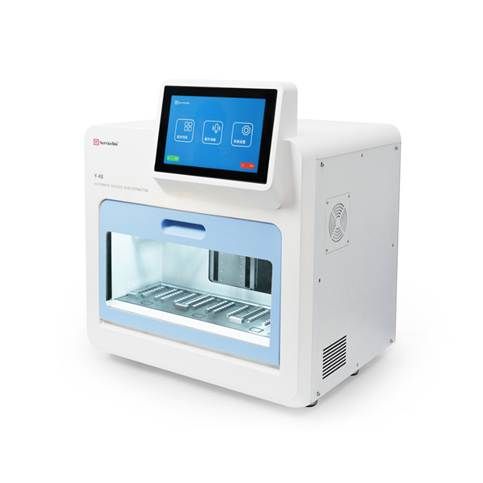

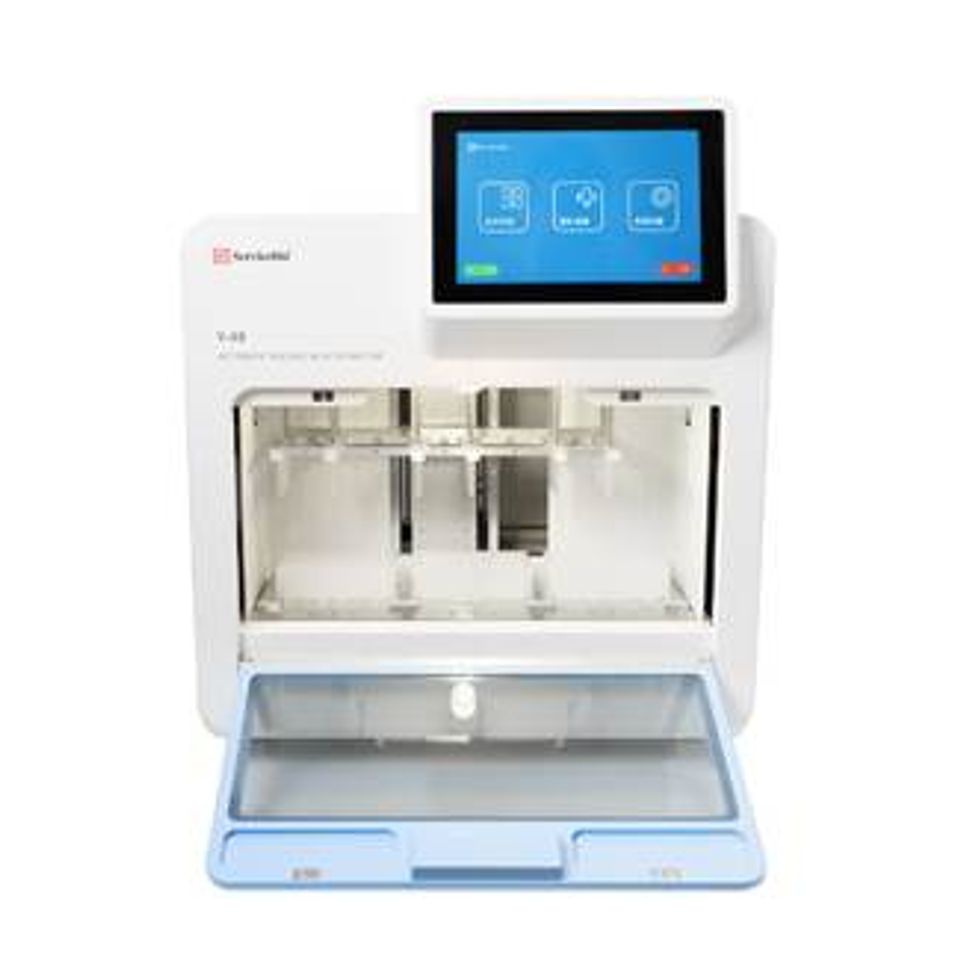

Automatic Nucleic Acid Extractor

A fully automated nucleic acid extraction system compatible with a wide range of sample types. The instrument processes up to 48 samples simultaneously in a single run, delivering a simple, rapid, and high-quality extraction workflow.

Cat. No.: BE-Y-48

Brand: Servicebio
Image (10)
Image (9)
Instrument Introduction

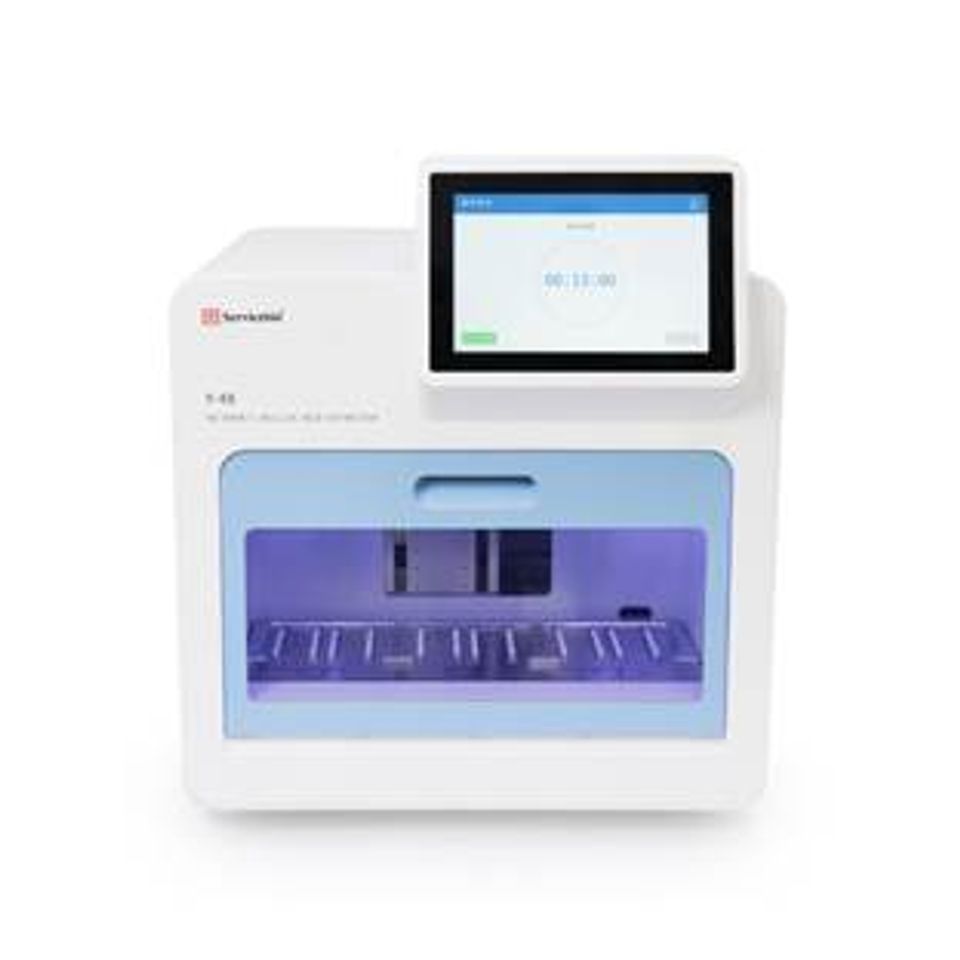

The Nucleic Acid Extractor BE-Y-48 is designed to extract nucleic acids from a variety of sample types with exceptional efficiency. Supporting the simultaneous processing of up to 48 samples per run, the BE-Y-48 provides a streamlined, fast, and reliable extraction process with no visible magnetic bead residue.

When used with the MagBind Animal Tissue Total RNA Extraction Kit (Prepackaged 48T) BE-G3690-48T and the MagBind Animal Tissue Genomic DNA Extraction Kit (Prepackaged 48T) BE-G3691-48T, the system further improves extraction throughput, purity, and consistency. In addition, when paired with Servicebio’s full range of pre-packaged nucleic acid extraction reagents, the Y-48 enables automated extraction across diverse sample types—offering a convenient, hands-free solution that delivers superior and reproducible experimental results.

Product Parameters

Cat. No. BE-Y-48
Principle Magnetic Bead Method
Working Volume 20μL~1mL
Sample Throughput 1–48 samples
Bead Recovery Rate 99%
Consumables 96-well Deep-well Plate
Heating Temperature Room Temp.~120°C
Interface A large color touchscreen with external mouse connectivity.
Operating Ambient Temperature 10°C ~40°C
Relative Humidity 10%~90%
User Interface 10.1-inch Color Touchscreen
Built-in Programs Can store 500 programs
Program Management Create, Edit, Modify, Delete
Network Wireless Wi-Fi Function
Sterilization/Disinfection UV Sterilization
Rated Power 750W
Power Supply AC100~240V (±10%), 50Hz/60Hz±1Hz
Dimensions 632.5×528×490mm
Weight 36.9Kg


Product Structure
Image (11)
Image (12)
Image (13)
Image (9)

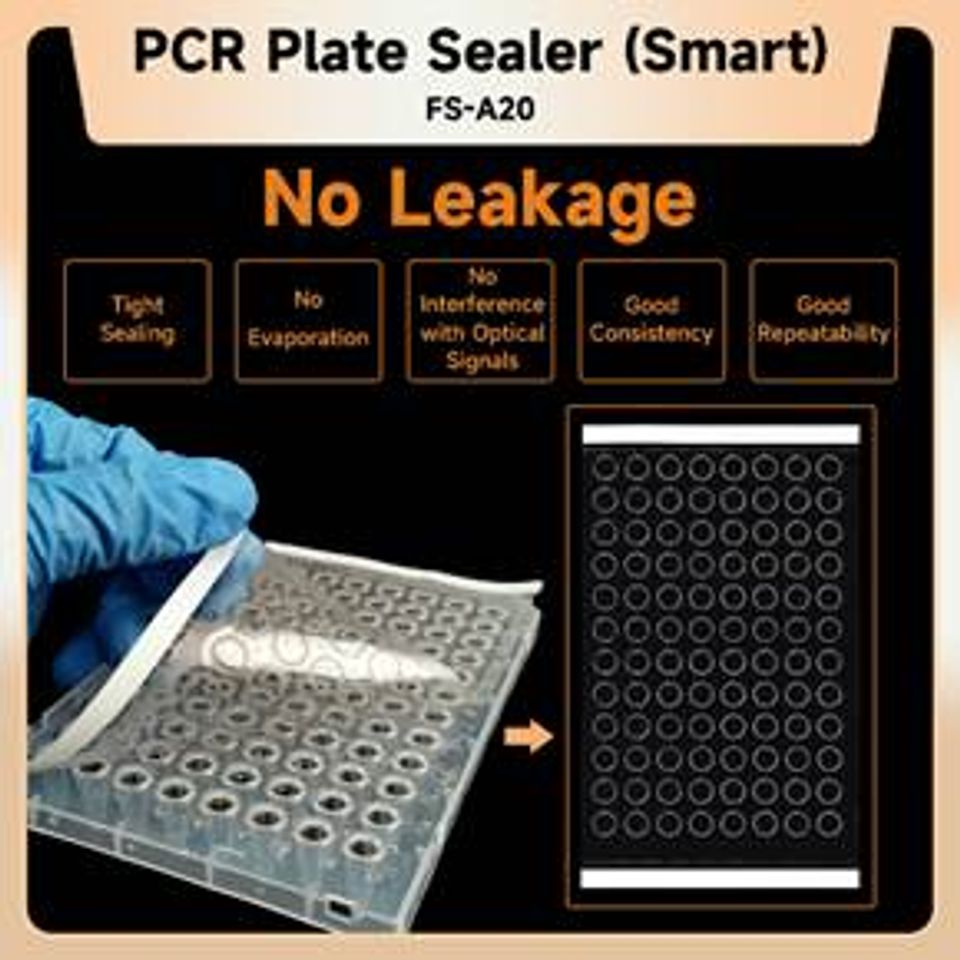

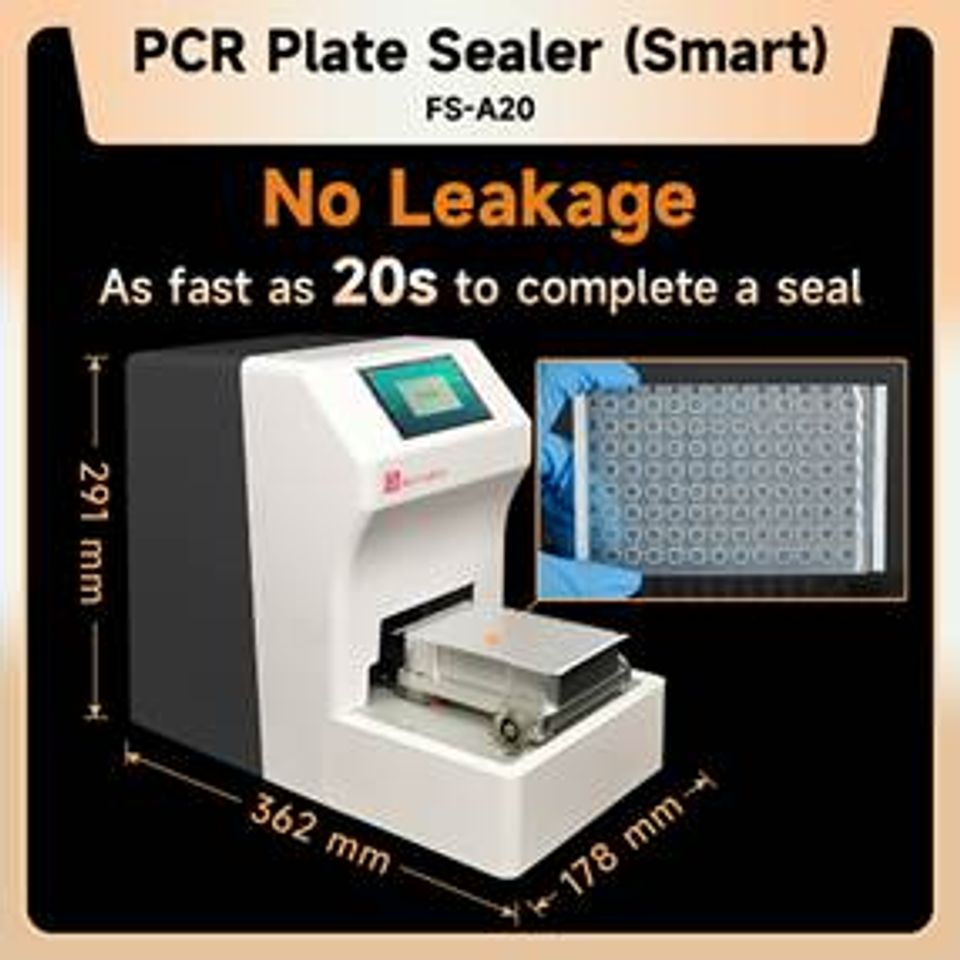

PCR Plate Sealer (Smart)

Cat. No.: BE-FS-A20

Brand: Servicebio
Image (10)
Image (11)
Image (12)

Image (13)

Image (14)

Image (15)

Product Description

The BE-FS-A20 Automatic Film Sealer features an innovative rolling design that effectively prevents sample loss and cross-contamination. It is suitable for both conventional PCR (Polymerase Chain Reaction) and fluorescence qPCR (Quantitative Polymerase Chain Reaction) applications.

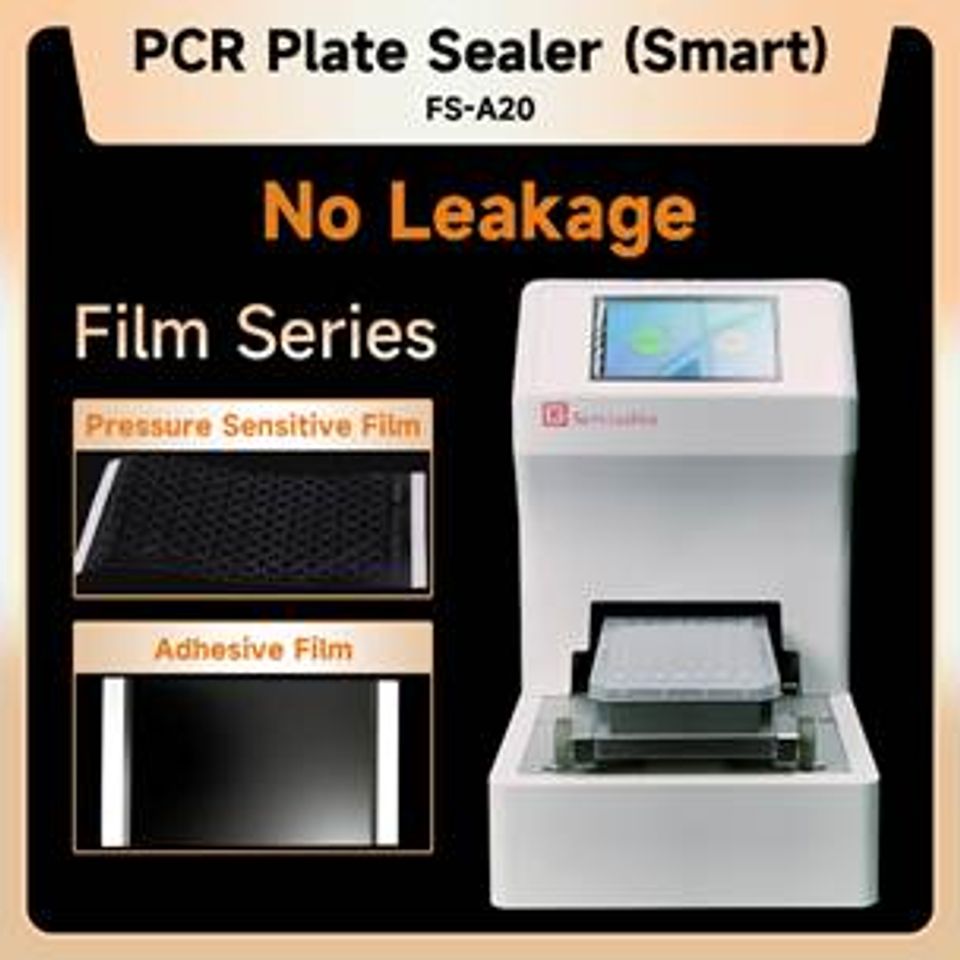

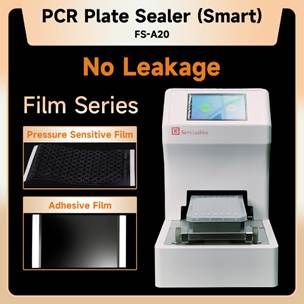

The instrument is easy to operate and offers four sealing modes:

  • Pressure-sensitive film
  • Adhesive film
  • 0.1 mL PCR 8-strip tubes
  • 0.2 mL PCR 8-strip tubes

Software parameters and rolling pressure can be adjusted with flexibility, allowing users to fine-tune sealing conditions based on experimental needs. The adjustable rolling frequency ensures compatibility with a variety of pressure-sensitive films, adhesive films, and PCR reaction plates from different manufacturers.

Product Features

  • Touch-screen interface for intuitive and convenient operation.
  • Excellent sealing performance, ensuring no evaporation and high consistency across wells.

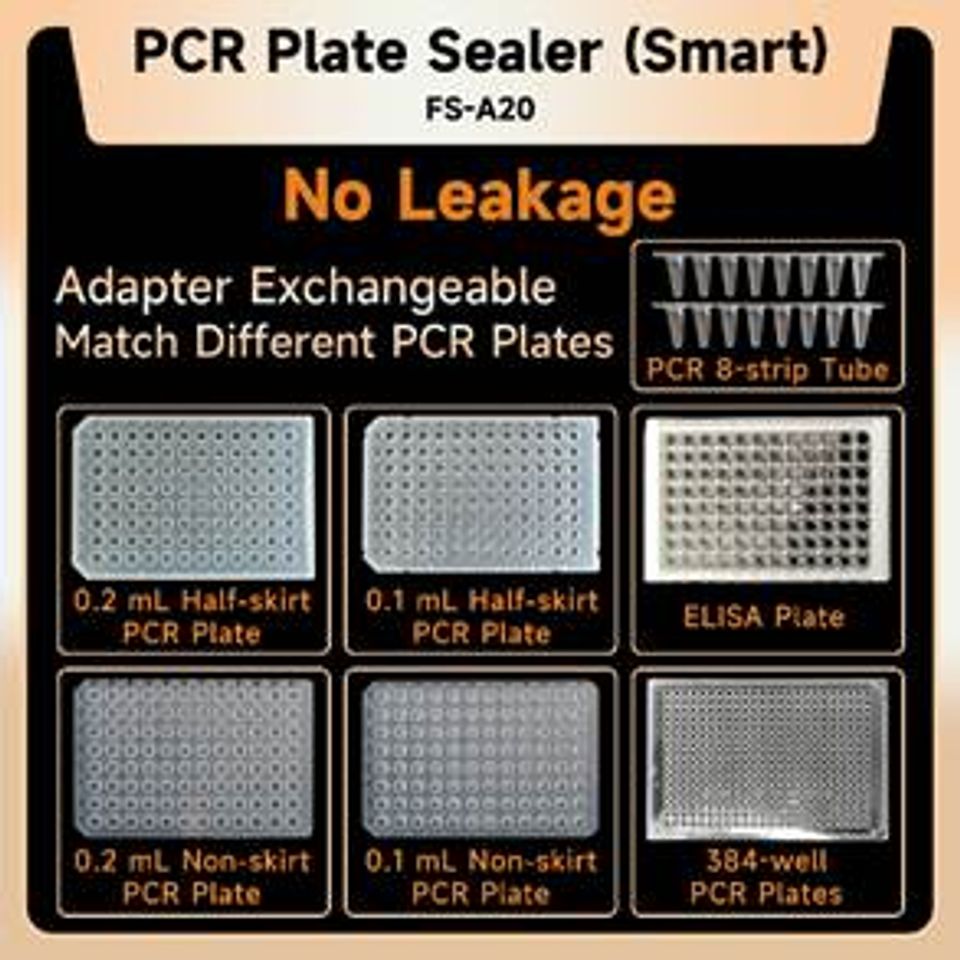

  • Compatible with 96-well and 384-well PCR plates, supporting pressure-sensitive and adhesive films, as well as 8-strip tube sealing.
  • Capable of sealing films for both 96-well and 384-well PCR plates and pressing caps for 8-strip PCR tubes.
  • Quiet operation, ensuring a comfortable laboratory environment.

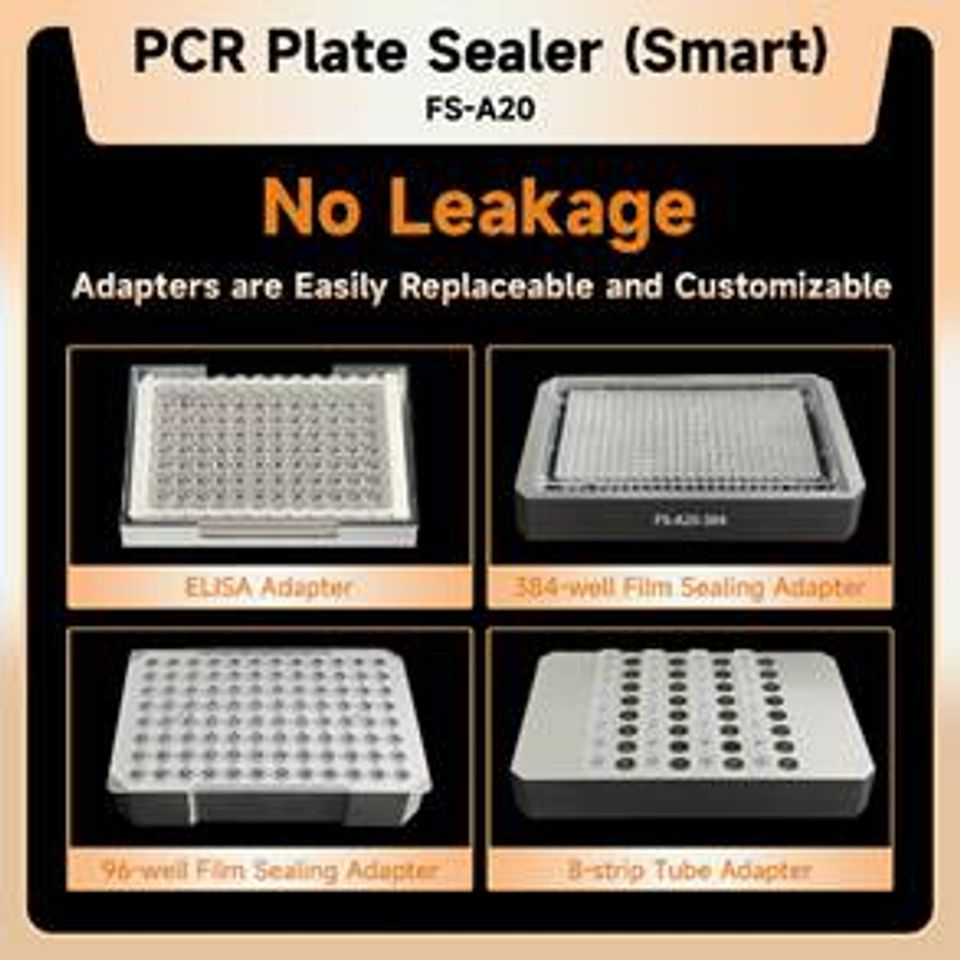

  • Easy-to-replace adapters, with customization options available based on experimental requirements.

Operation Steps

1. Connect the power supply, turn on the instrument, and allow it to complete the automatic self-check.
2. After the self-check, the screen will display the main interface (mode selection screen).
3. Select the appropriate mode according to the sealing requirements:
  • PS Film (Pressure-Sensitive Film Mode)
  • Adhesive Film Mode
  • 0.1 mL Tube Mode (for 0.1 mL 8-strip tubes)
  • 0.2 mL Tube Mode (for 0.2 mL 8-strip tubes)
4. Place the corresponding adapter on the instrument (96-well plate adapter, 384-well plate adapter, or 8-strip tube adapter).
5. Tap the settings icon (upper right corner) to adjust rolling parameters.

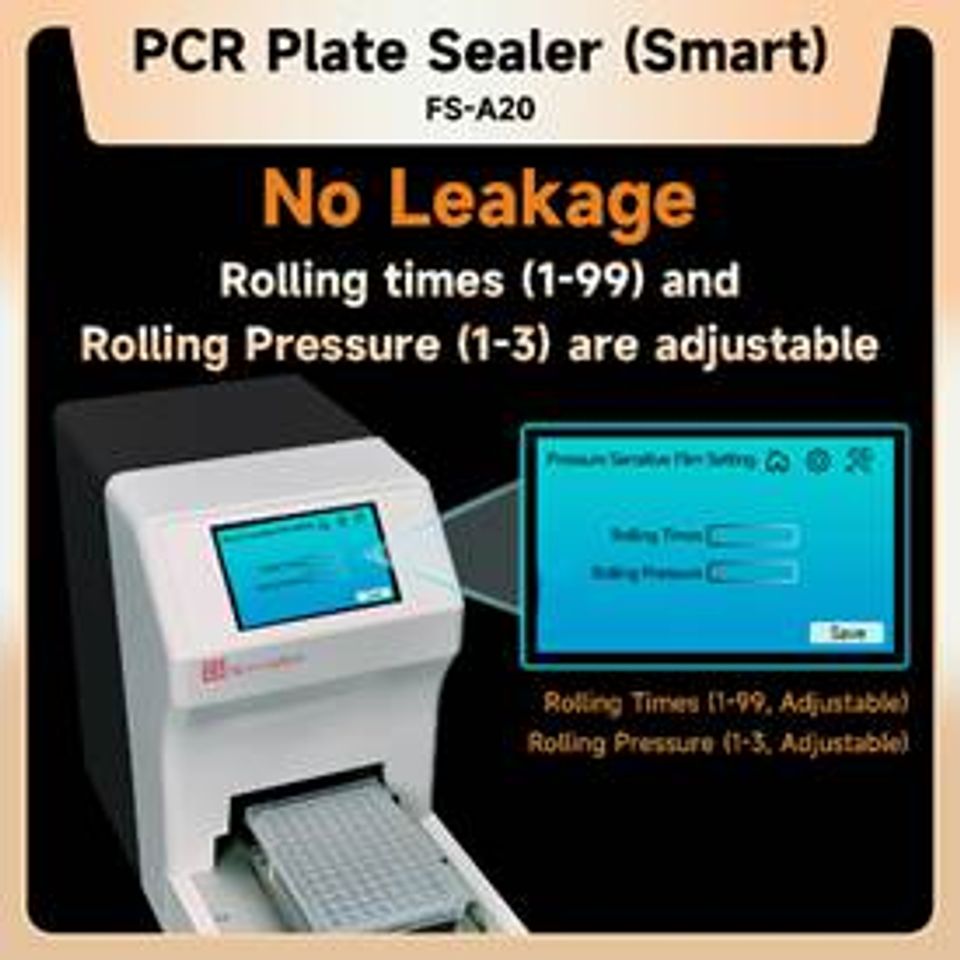

6. Set the Rolling Times (1–99) and Rolling Pressure (1–3) as needed.
7. Click Save to return to the operation interface.
  • For pressure-sensitive or adhesive films: Prepare the sample in the PCR plate, apply the film, and place the plate onto the sealer ensuring proper alignment.
  • For 8-strip tubes: Place the sample-filled 8-strip tubes onto the corresponding film.
8. Press START. The instrument will automatically move into the working chamber and begin sealing based on the selected mode.
9. When sealing is complete, the instrument will automatically return to the loading position and display Finished.
10. Remove the sealed PCR plate or capped 8-strip tubes.

Note

If an incorrect operation or sample issue occurs, stop the process and remove the PCR plate. Press the Stop button to exit the working chamber safely.

Warning

Do not touch the PCR plate while the instrument is operating to avoid physical injury or sample loss.

Basic Parameters

Model FS-A20
Dimensions (L*W*H) 362*178*291 mm
Reaction Plate PCR reaction plate without skirt, half skirt, full skirt, Elisa plate, 0.1mL/0.2 mL PCR 8-strip tubes
Sealing Film PCR sealer film (pressure-sensitive, adhesive film)
Running Times 1-99
Rolling Position 1-3
Weight 7 kg


Product Configuration List

Item Name Cat No. Qty
1 Film Sealer BE-FS-A20 1 Set
2 PCR Sealing Film BE-G6065 1 Box
3 PCR Reaction Plate BE-PCR-9601-NS 1 Box
4 Power Cable 1
5 Product Manual 1
1 Warranty Card 1
1 Product Certification 1


Request a Quotation
Image (9)

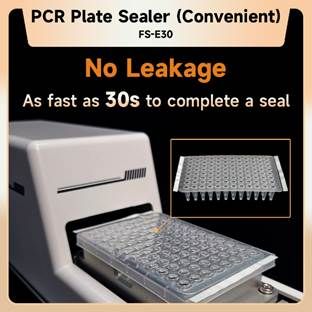

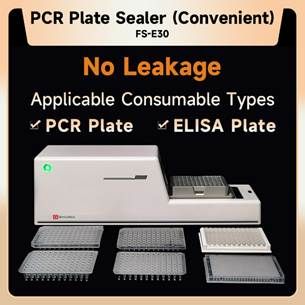

PCR Plate Sealer (Convenient)
Cat. No.: BE-FS-E30

Brand: Servicebio
Image (10)
Image (11)
Image (12)

Product Description

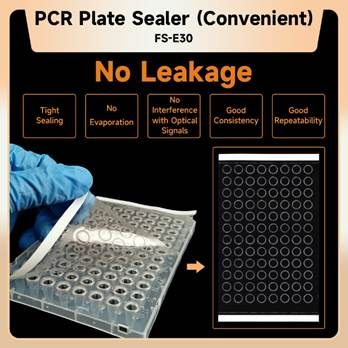

The BE-FS-E30 Automatic Film Sealer utilizes a precision rolling mechanism to ensure safe, firm, and consistent sealing. This design not only simplifies operation but also eliminates issues commonly associated with traditional manual adhesive sealing. It effectively prevents sample loss, evaporation, and cross-contamination that may occur during PCR workflows. Additionally, the BE-FS-E30 enhances sample security during storage and transportation in microplates.

Compared with conventional heat-press sealing methods, the mechanical rolling approach prevents temperature-induced problems such as sample inactivation and volatilization, ultimately improving experimental accuracy and reliability.

Product Features

1. Simple operation with reliable sealing performance.
2. Fully automated rolling mechanism, eliminating the need for manual intervention.
3. High efficiency, completing each sealing cycle in approximately 30 seconds.
4. Intelligent touch control for chamber entry and exit, preventing errors such as misaligned plates or incorrect placement.
5. Compact and lightweight design, allowing easy placement and mobility.
6. Status indicator lights provide real-time machine status:
  • Yellow – Standby
  • Green – Running
  • Red – Error (If the red light remains on, the device can be restarted and will return to normal after automatic initialization.)

Operation Steps

1. Connect the power cord and start the instrument. The system will perform an automatic self-check. During this process, the indicator light is red. When the self-check completes, the light turns yellow, indicating standby mode.
2. Prepare the sample in the PCR plate, apply the sealing film, and ensure it is flat and properly adhered.
3. Place the sealed PCR plate onto the film sealer, ensuring correct well alignment. Touch the activation switch to begin operation. The indicator light will turn flashing green, and the plate will move into the working chamber.
4. The instrument performs an initial pre-rolling step, followed by a second rolling pass after the plate partially exits the chamber. When the process is complete, the indicator light returns to yellow, indicating the sealing is finished.
5. Remove the fully sealed PCR plate.

Basic Parameters

Model FS-E30
Dimensions (L*W*H) 472 x 119 x 143 mm
PCR Reaction Plate Non-Skirt, Half Skirt, Full Skirt PCR Reaction Plate, Elisa Plate(Optional)
Sealing Film PCR Sealing Film (Pressure Sensitive)
Weight 6.7 kg


Product Configuration List

Item Name Cat No. Qty
1 Film Sealer BE-FS-E30 1 Set
2 PCR Sealing Film BE-G6065 1 Box
3 PCR Reaction Plate BE-PCR-9601-NS 1 Box
4 Power Cable 1
5 Product Manual 1
1 Warranty Card 1
1 Product Certification 1


Note

The purpose of the pre-rolling step is to quickly and evenly bond the sealing film to the plate, preventing warping or uneven edges that could compromise sealing quality.

If an operational error or sample issue occurs, stop the process and remove the PCR plate by touching the switch to retract it from the working chamber.

Warning

Do not touch or handle the PCR plate during operation to avoid personal injury or sample loss.

Request a Quotation
Be fs fh10

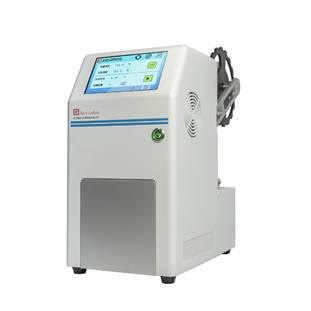

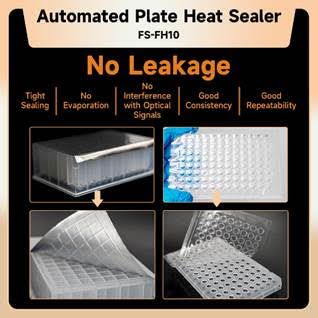

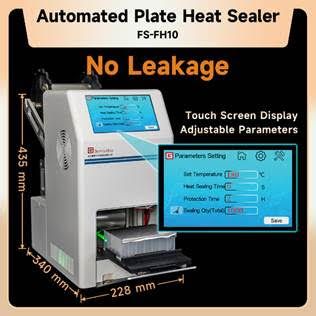

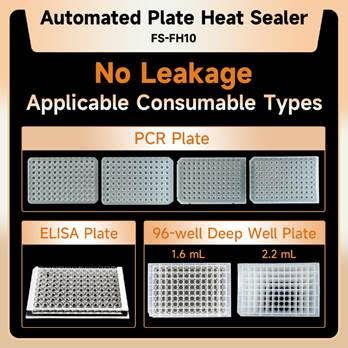

Automated Plate Heat Sealer
Cat. No.: BE-FS-FH10

Brand : Servicebio
Be fs fh10 1
Be fs fh10 2
Be fs fh10 3

Be fs fh10 4

Be fs fh10 5

Be fs fh10 6

Be fs fh10 7

Be fs fh10 8

Be fs fh10 9

Be fs fh10 10

Product Description

This instrument utilizes thermal pressure sealing technology to provide a tight, leak-free seal. It effectively prevents sample loss and cross-contamination and is compatible with PCR plates as well as 96-well deep-well plates (1.6 mL and 2.2 mL).

The system is easy to operate and offers fully automated heat sealing for both transparent thermal sealing films and aluminum thermal sealing films, ensuring consistent, reliable performance.


Product Parameters

Model BE-FS-FH10
Dimensions (L*W*H) 340 mm*228 mm*435 mm
Plate Type for Sealing PCR plates, 96-well deep well plates (2.2 mL and 1.6 mL)
Power 450W

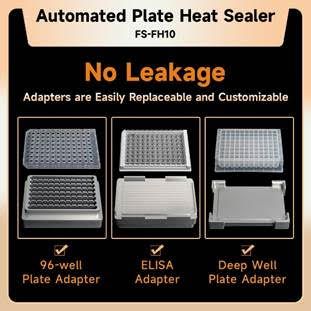

Adapter PCR plate adapter, 96-well deep well plates (1.6 mL)
Net Weight 15 Kg


Operation Steps

1. Connect the power supply and turn on the power switch. The screen will illuminate, and the instrument will begin a self-check.
2. After the self-check is completed, the main interface (heat sealing interface) will be displayed.
3. Install the sealing film roll and set the appropriate film feed length.
4. Click the Set button to enter the temperature and time parameter settings screen. Adjust these parameters according to the requirements of the sealing film being used.
5. After setting the parameters, click Back to return to the heat-sealing interface.
6. Click the Heat button and wait for the heating block to reach the target temperature.
7. Place the appropriate adapter and plate onto the loading platform.
8. Once the actual temperature reaches the set point, the screen will indicate that the target temperature has been reached. Press the Start button, and the instrument will automatically complete the sealing process.
9. After sealing, the plate will automatically exit the machine.
10. Remove the sealed PCR plate or 96-well deep-well plate.

Note:

If an error occurs or the wrong sample/plate is placed, click the Stop button to halt the operation. The plate can then be safely removed.

Notes

  • Do not place any objects in front of the instrument’s door to avoid obstruction or impact when it opens.
  • Do not open the front door while the instrument is operating to avoid injury or mechanical interference.
  • If the instrument will not be used for an extended period, turn off the power switch and unplug the power cord.
  • Do not touch the heating block during operation or before it fully cools, as it may cause burns.
  • If the instrument malfunctions, disconnect the power plug immediately.
  • Do not pull or damage the power cord. Maintain proper electrical safety at all times.
Request a Quotation
Be smp 2

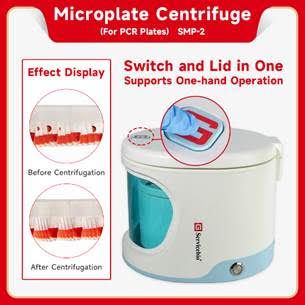

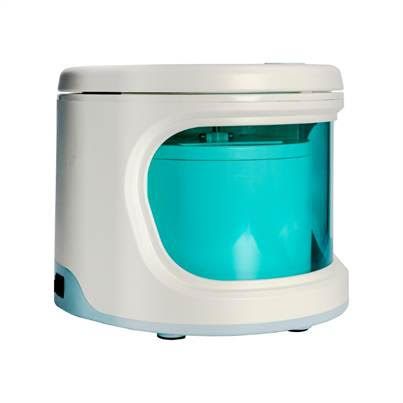

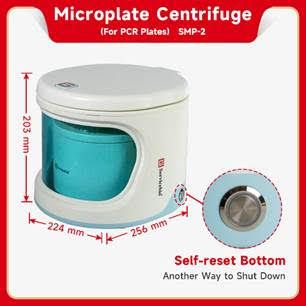

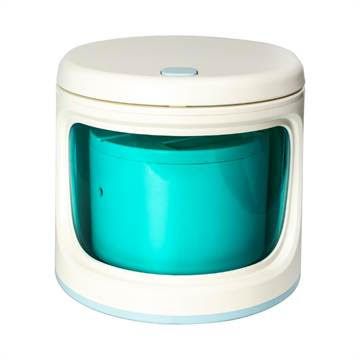

Microplate Centrifuge (for PCR Plate)
Cat. No.: BE-SMP-2

Brand: Servicebio
Be smp 2 1
Be smp 2 2

Be smp 2 3

Be smp 2 4

Be smp 2 5

Be smp 2 6

Be smp 2 7

Product Description

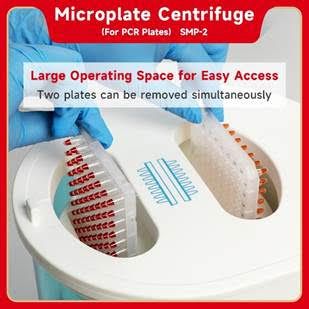

The microplate centrifuge is a rapid, compact centrifuge specifically designed for 96-well microplates, providing efficient separation of droplets adhering to the well walls. Microplates are loaded vertically into the centrifuge cavity through the top opening, and due to surface tension, the liquid remains securely at the bottom of each well—eliminating concerns about leakage.

After closing the top cover, the rotor accelerates instantly to 2200 rpm, ensuring quick and uniform droplet collection.

Product Features

  • Dual-plate capacity — accommodates two microplates simultaneously without the need for manual rotation.
  • Active braking system — motor-driven braking enables a gentle stop within 10 seconds.
  • Safety interlock — inductive door switch automatically stops operation when the lid is opened; can be operated with one hand.

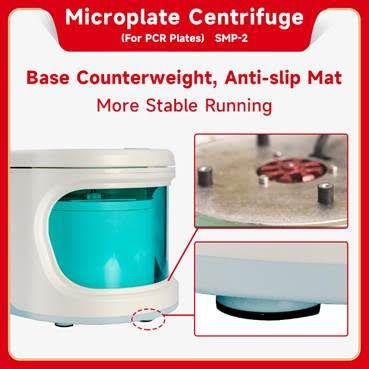

  • Stable, low-vibration design — bottom counterweight lowers the center of gravity, ensuring smooth, stable startup and operation.

Product recommendation

BE-SLX-1024F Low-temperature High-speed Centrifuge Set
BE-SLX-1024F-0224 Centrifuge Adapter 1.5mL*24/2mL*24
BE-SLX-1024F-0512 Centrifuge Adapter 5mL*12
BE-SLX-1024F-1006 Centrifuge Adapter 5mL*6/10mL*6
BE-SLX-1024F-CXG0512 Centrifuge Adapter Blood Collection Tube 5mL*12
BE-SMC-5000F Mini Centrifuge (Upgraded, integrated） Set
BE-SMP-2 Microplate Centrifuge (for PCR plate) Set


Be slx 1024f

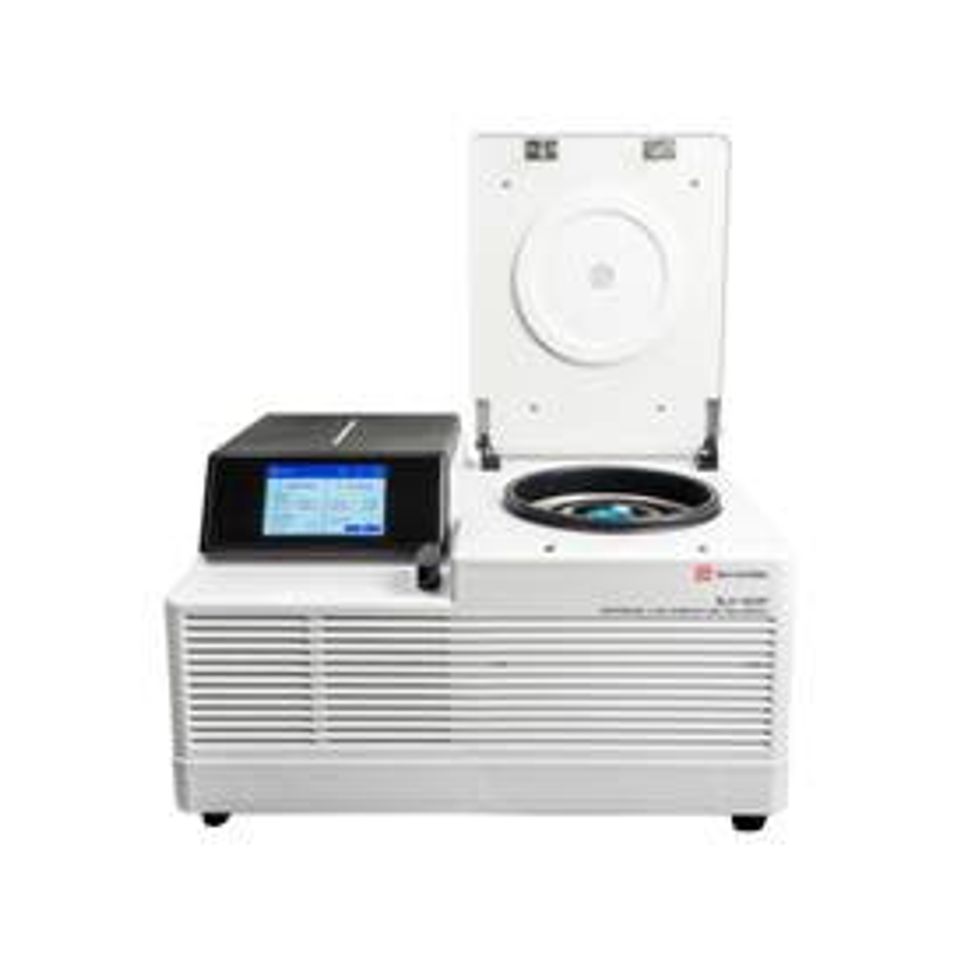

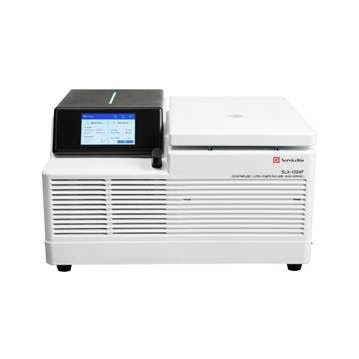

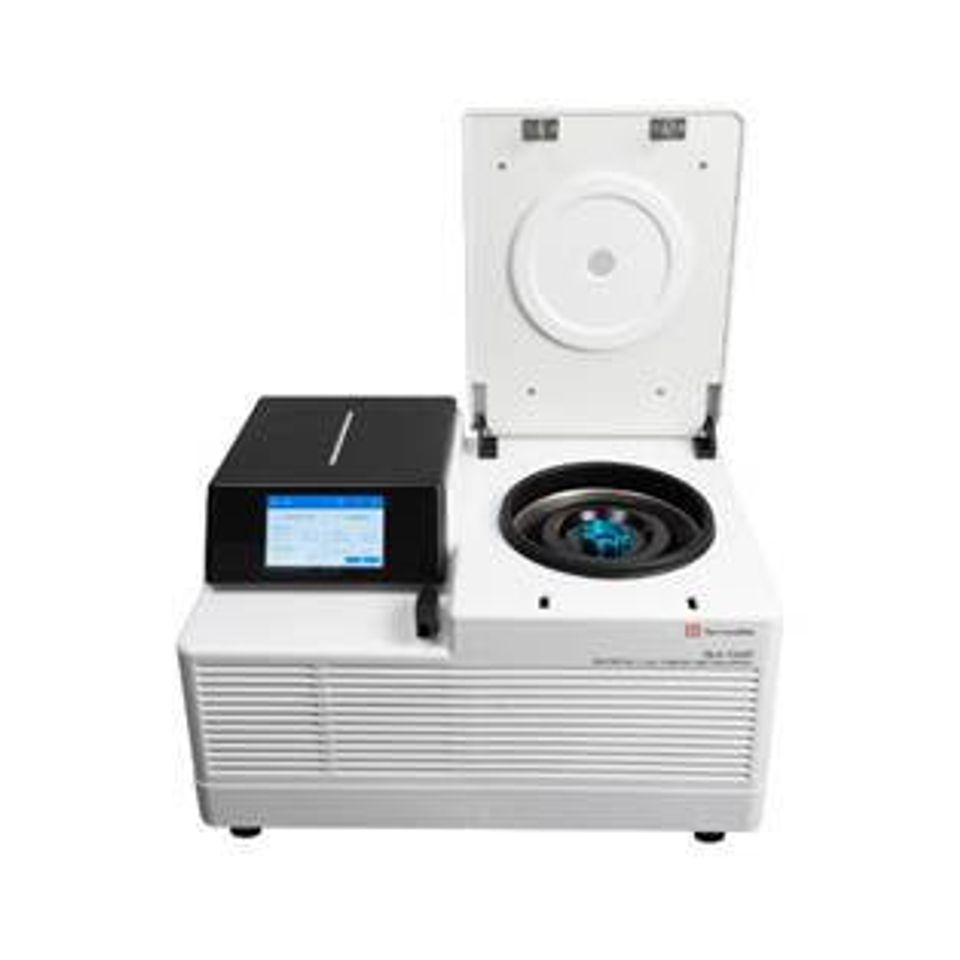

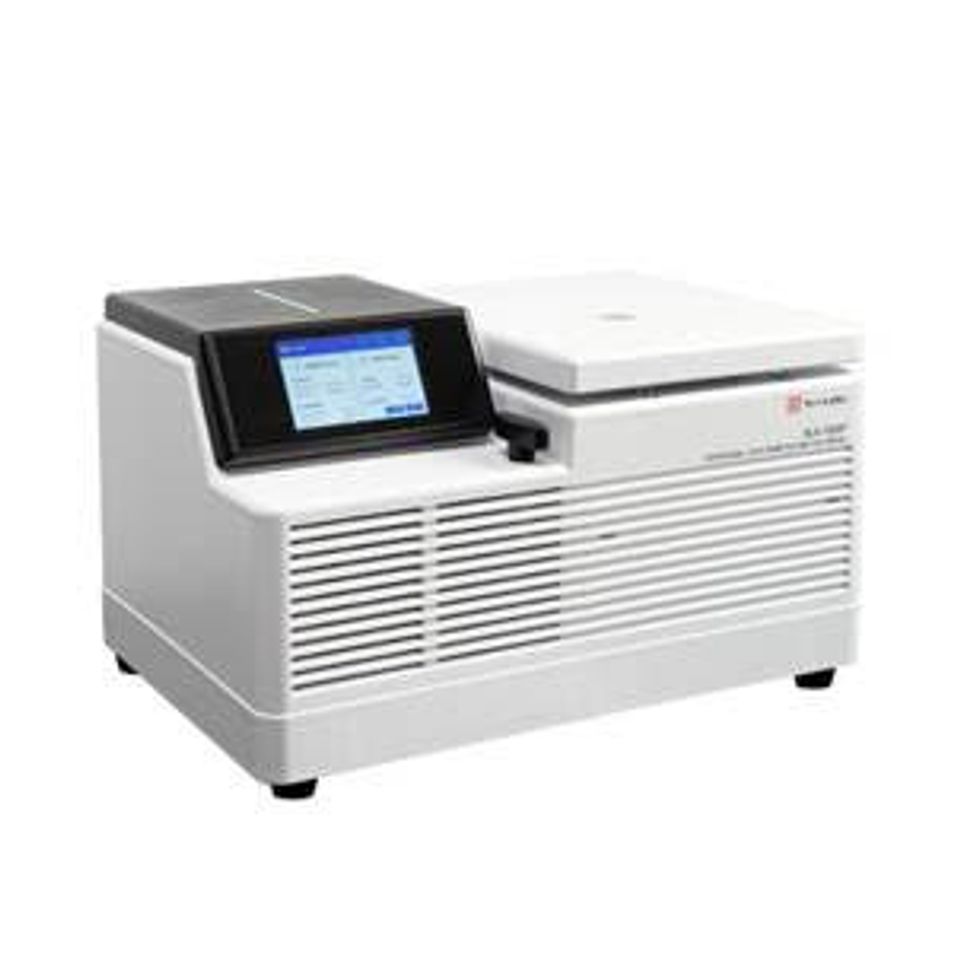

Low-Temperature High-Speed Centrifuge
Maintain a low temperature of 4°C continuously for a long time at a speed of 15000 rpm.

Cat. No.: BE-SLX-1024F

Brand: Servicebio
Be slx 1024f 1
Be slx 1024f 2

Be slx 1024f 3

Be slx 1024f 4

Be slx 1024f 5

Be slx 1024f 6

Product Introduction

The low-temperature centrifuge is widely used across biology, medicine, agriculture, and the chemical industry. It operates by applying centrifugal force to achieve gravity-based separation of sample components. With a maximum speed of 15,000 rpm and a maximum centrifugal force of 21,381 × g, this instrument delivers high-efficiency fractionation for a variety of applications.

Its integrated cooling system ensures that samples remain at low temperature throughout the centrifugation process, preventing heat generation and providing optimal protection—especially critical for temperature-sensitive materials such as RNA, proteins, and other biomolecules.

Product Features

True low-temperature performance
• Maintains stable low temperatures throughout operation
• Prevents heat-induced RNA/protein degradation
• Ensures superior experimental reliability and sample integrity

      1. Asymmetrical balance monitoring system:
          Automatically stops operation if samples are placed unevenly or if an imbalance is detected, ensuring safe and reliable centrifugation.

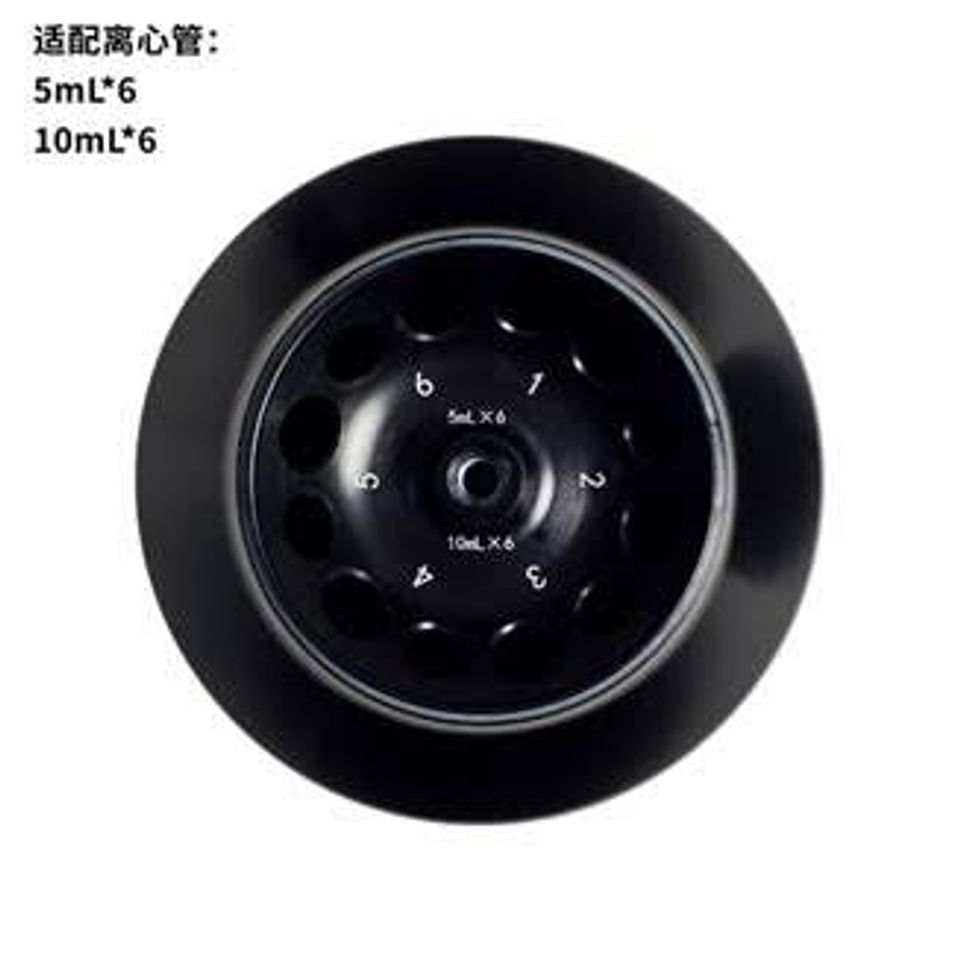

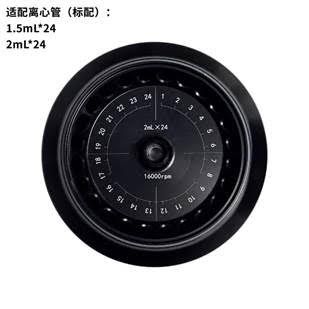

       2. Wide rotor compatibility:

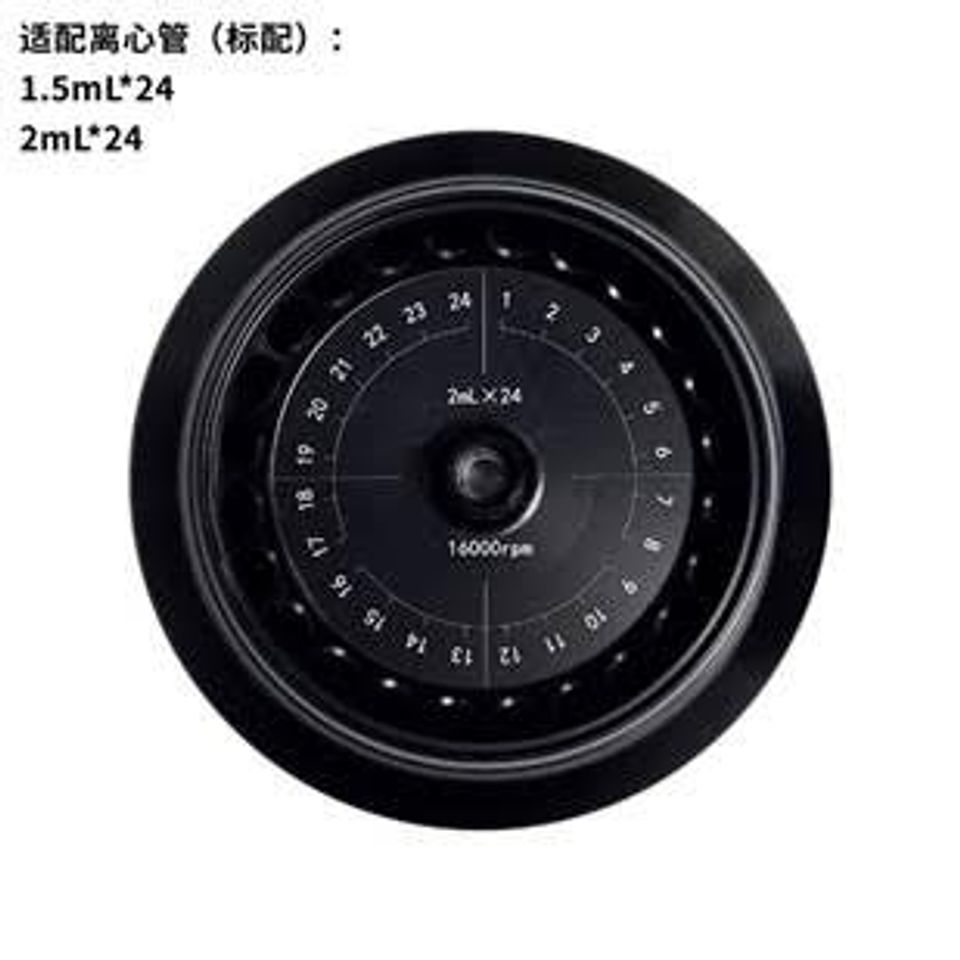

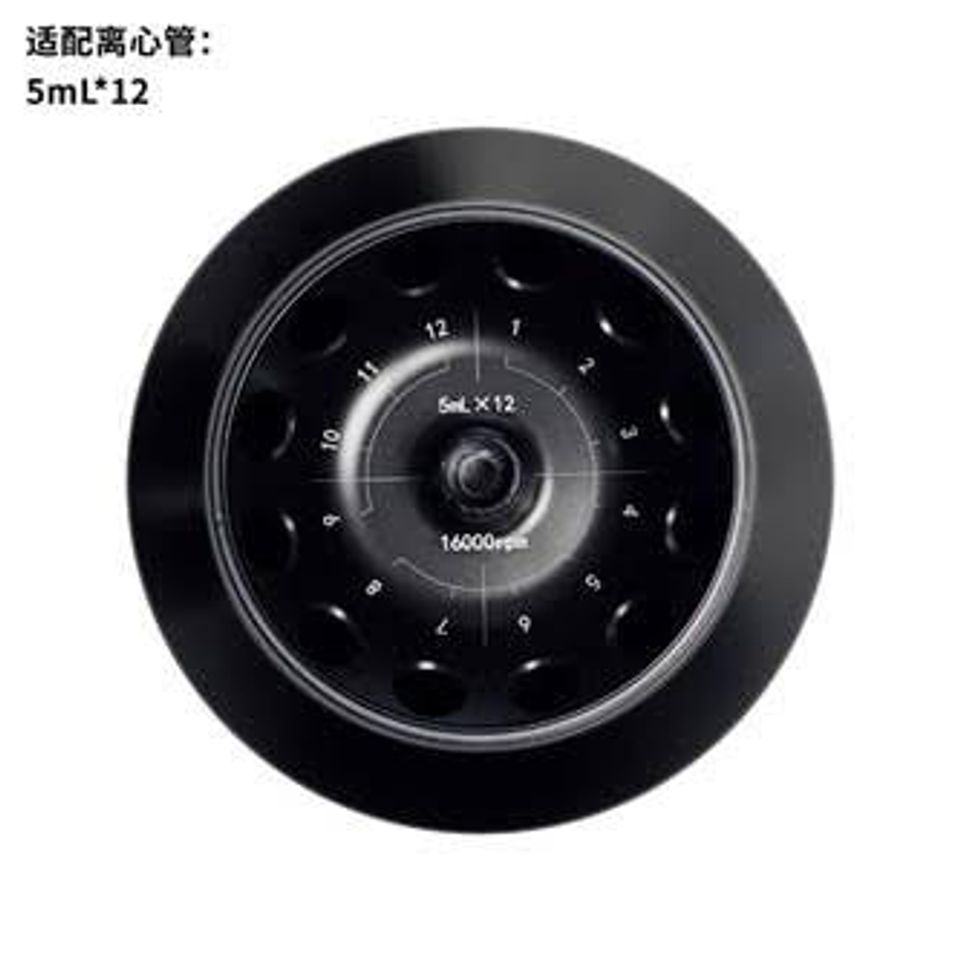

           Supports multiple tube formats including 1.5/2 mL (standard), 5 mL, 10 mL centrifuge tubes, and 5 mL blood collection tubes, offering flexibility for diverse laboratory needs.
Be slx 1024f 7

Working Environment

Power Parameters 200-240VAC, 50Hz, 550W; power voltage fluctuation does not exceed 10% of the rated power voltage.
Room Temperature 5℃-40℃
Relative Humidity Maximum 80%
Operating Location Indoor use
Altitude Up to 2000 meters


Technical Parameters

Dimensions 530 x 355 x 268mm
Weight 45 kg
Screen Size 5 inches
Temperature Control Accuracy ±2℃
Operating Time 1-99 minutes
