Operation Parameters

Operating Mode Continuous
Time Setting 1-99 min
Balancing Monitoring Gyroscope
Refrigeration system SECOP Compressor Cooling
Temperature Range -20℃~40℃
Temperature Efficiency Specimens at room temperature go in (centrifuge for 10 minutes) and come out at 4℃
Rotor Capacity [1.5mL / 2mL*24] [5mL*12] [10mL*6]
Rotor Replacement Quick-Change Mode: Only requires a dedicated wrench for removal and installation
Rotor Removal Can be removed as a whole without opening the lid, to prevent the dispersion of specimen gas molecules
Specimen safety Equipped with multiple sealing rings to prevent dispersion contamination
Interface Operation Full touch screen interface, can be operated with gloves
Machine Safety Double lock mechanism, and equipped with manual door opening mechanism during power failure
Status Indicator LED strip status indicator, displays real-time working status
Software Functions Quick cooling setting. Real-time temperature monitoring. User program memory (up to 10 sets). Real-time parameter adjustment. Gyroscope balancing detection. Real-time monitoring of motor overvoltage, undervoltage, blockage, and overheating, with alarms and automatic shutdown.

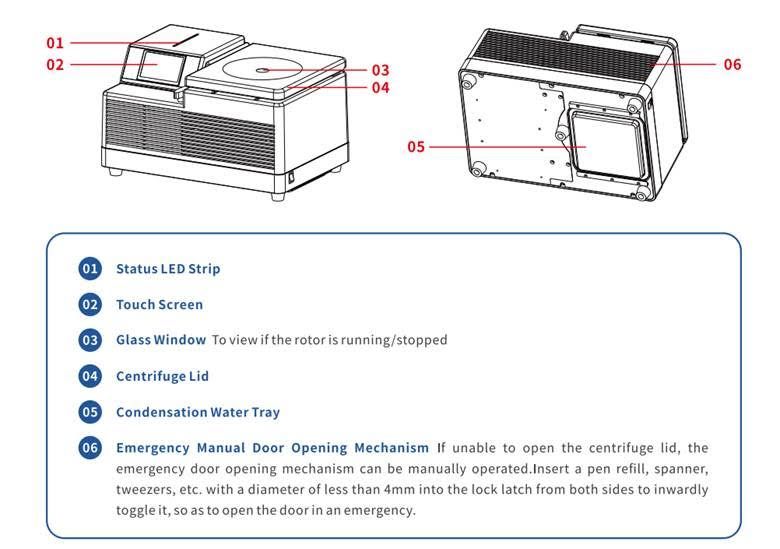

Product Structure

Be slx 1024f 10

Product Recommendation

BE-SLX-1024F Low-Temperature High-Speed Centrifuge Set
BE-SLX-1024F-0224 Centrifuge Adapter 1.5mL*24/2mL*24
BE-SLX-1024F-0512 Centrifuge Adapter 5mL*12
BE-SLX-1024F-1006 Centrifuge Adapter 5mL*6/10mL*6
BE-SLX-1024F-CXG0512 Centrifuge Adapter Blood collection tube 5mL*12
BE-SMC-5000F Mini Centrifuge (Upgraded, integrated） Set
BE-SMP-2 Microplate Centrifuge (for PCR plate) Set


Pcr system

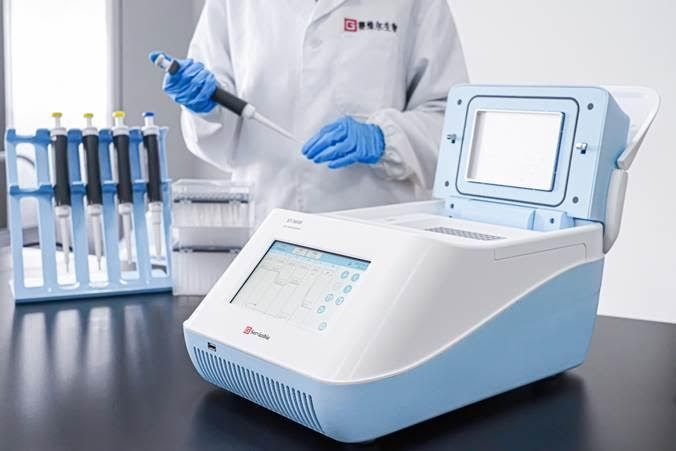

PCR System
Cat. No.: BE-ST-9600

Brand: Servicebio
Product Introduction

The PCR (Polymerase Chain Reaction) machine is designed to rapidly amplify specific DNA fragments in vitro by replicating the natural DNA duplication process, enabling exponential increases in DNA quantity.

PCR systems are widely used in medicine, biology, biotechnology, forensics, environmental science, and molecular biology research. They play a crucial role in disease diagnostics, genetic analysis, gene expression studies, mutation detection, and forensic identification. By providing precise temperature control and reliable amplification performance, PCR instruments allow scientists to explore and understand the complexities of DNA and its functions across diverse biological applications.

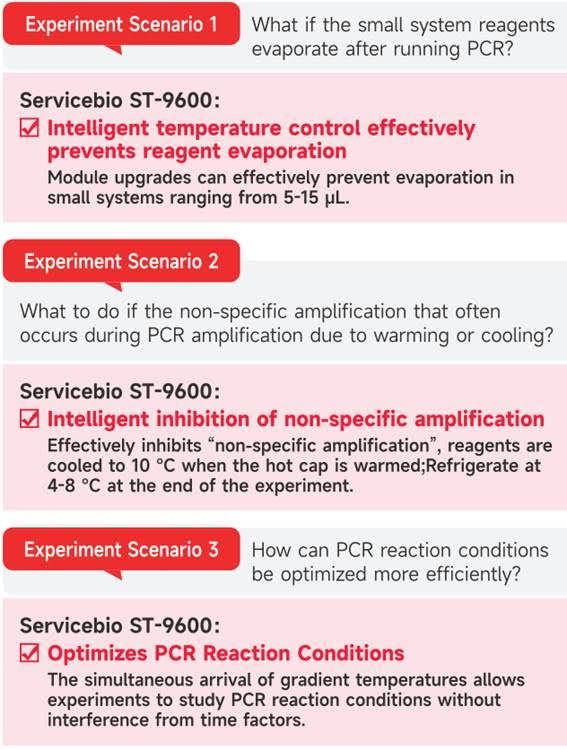

Product Features

  • Intelligent suppression of nonspecific amplification, improving reaction specificity and accuracy
  • Gradient temperature functionality for optimizing PCR conditions and enhancing experimental efficiency
  • Advanced temperature control system that minimizes reagent evaporation and ensures reliable amplification
  • User-friendly touchscreen interface for intuitive program editing and simplified operation

Proudct Parameters

Cat. No BE-ST-9600
Module Specification 0.2ml*96, Aluminum
Effective Hole Position 96 wells (single tube, 8/12-strip tubes, no skirt, half skirt)
Power Max 220V~50Hz，600VA
Dimension L×W×H Max 437mm × 250mm × 235mm
Weight Max 9.7 kg


Pcr system 1
Pcr system 2

Product Recommendation for Servicebio PCR Workflow

BE-FS-A20 PCR Plate Sealer (Smart) Set
BE-FS-E30 PCR Plate Sealer (Convenient) Set
BE-FS-FH10 Automated Plate Heat Sealer Set
BE-G6065-100 Fluorescence Quantitative PCR Sealing Film (Pressure-Sensitive, Highly Adhesive) 100 pcs/box
BE-G6065-25 Fluorescence Quantitative PCR Sealing Film (Pressure-Sensitive, Highly Adhesive) 25 pcs/box
BE-G6067-100 Fluorescence Quantitative PCR Sealing Film (Highly Adhesive) 100 pcs/box
BE-G6069-100 Fluorescent quantitative PCR sealing film (pressure sensitive and high viscosity plus type) 100 pcs/box
BE-PCR-0801-FC PCR 8-Strip Tubes, 100 μL 100 μL, 125 pcs/box, with lid
BE-PCR-0801W-FC PCR 8-Strip Tubes, White, 100 μL 100 μL, 125 pcs/box, with lids (100 μL, White)
BE-PCR-0802-FC PCR 8-Strip Tubes, Transparent, 200 μL 200 μL, 125 pcs/box, with lid
BE-PCR-0802W-FC PCR 8-Strip Tubes, White, 200 μL 200 μL, 125 pcs/box, with lids (200 μL, White)
BE-PCR-9601-HS PCR Plate (Transparent) 0.1 mL, Half-Skirted, 10pcs/box
BE-PCR-9601-NS PCR Plate (Transparent) 0.1 mL, Non-Skirted, 10pcs/box
BE-PCR-9601W-HS PCR Plate (White) 0.1mL, Half-Skirted, White, 10 pcs/box
BE-PCR-9601W-NS PCR Plate (White) 0.1 mL, Non-Skirted, White,10 pcs/box
BE-PCR-9602-HS PCR Plate (Transparent) 0.2mL, Half-Skirted, 10 pcs/box
BE-PCR-9602-NS PCR Plate (Transparent) 0.2mL, Non-Skirted, 10pcs/box
BE-PCR-9602W-HS PCR Plate (White) 0.2 mL, Half-Skirted, White, 10 pcs/box
BE-PCR-9602W-NS PCR Plate (White) 0.2 mL, Non-Skirted, White, 10 pcs/box
