Pipettes
Product Introduction
A pipette is an instrument designed for the accurate and quantitative transfer of liquids. It is commonly used in analytical testing and research applications to handle small or microliter volumes of liquid with precision.

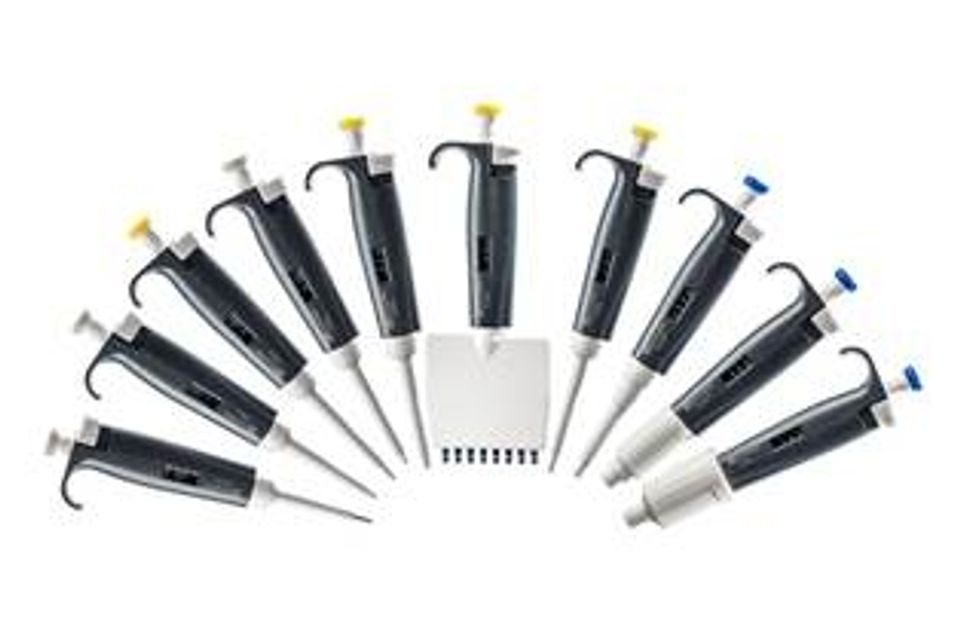

Available in eight color options, with the possibility to customize your own exclusive “lucky” color!
A pipette is an instrument designed for the accurate and quantitative transfer of liquids. It is commonly used in analytical testing and research applications to handle small or microliter volumes of liquid with precision.
Available in eight color options, with the possibility to customize your own exclusive “lucky” color!
Parameters for Single Channel Pipettes
| Item Name | Catalog # | Nominal Volume | Volume Range | Increment |
|---|---|---|---|---|
| Single Channel Pipette | BE-SPIP-2.5 | 2.5 μL | 0.1-2.5 μL | 0.05 μL |
| Single Channel Pipette | BE-SPIP-10 | 10 μL | 1-10 μL | 0.1 μL |
| Single Channel Pipette | BE-SPIP-20L | 20 μL | 2-20 μL | 0.1 μL |
| Single Channel Pipette | BE-SPIP-20 | 20 μL | 2-20 μL | 0.1 μL |
| Single Channel Pipette | BE-SPIP-50 | 50 μL | 5-50 μL | 0.5 μL |
| Single Channel Pipette | BE-SPIP-50H | 50 μL | 5-50 μL | 0.5 μL |
| Single Channel Pipette | BE-SPIP-100 | 100 μL | 10-100 μL | 1 μL |
| Single Channel Pipette | BE-SPIP-1000 | 1000 μL | 100-1000 μL | 5 μL |
| Single Channel Pipette | BE-SPIP-5000 | 5000 μL | 1000-5000 μL | 50 μL |
| Single Channel Pipette | BE-SPIP-10000 | 10 mL | 1-10 mL | 100 μL |
Parameters for Multichannel Pipettes
| Item Name | Catalog # | Nominal Volume | Volume Range | Increment |
|---|---|---|---|---|
| 8-Channel Pipette | BE-SPIP-B10 | 10 μL | 1-10 μL | 0.1 μL |
| 8-Channel Pipette | BE-SPIP-B20L | 20 μL | 2-20 μL | 0.1 μL |
| 8-Channel Pipette | BE-SPIP-B50 | 50 μL | 5-50 μL | 0.5 μL |
| 8-Channel Pipette | BE-SPIP-B100 | 100 μL | 10-100 μL | 1 μL |
| 8-Channel Pipette | BE-SPIP-B300 | 300 μL | 50-300 μL | 1 μL |
| 8-Channel Pipette | BE-SPIP-B1000 | 1000 μL | 100-1000 μL | 5 μL |
Product Features
Single-channel models: Available in 0.1–2.5 μL, 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 20–200 μL, 100–1000 μL, 1000–5000 μL, and 1–10 mL ranges. Multi-color range markers; 10 volume options available.
Multi-channel models: Available in 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 50–300 μL, and 100–1000 μL ranges; 6 volume options available.
Lightweight and ergonomic design provides comfortable handling and easy operation. The light spring mechanism minimizes hand fatigue and allows effortless pipetting.
Clear digital display shows the selected volume directly on the handle for easy and accurate adjustment.
Durable construction made from high-strength materials with excellent resistance to corrosion, alcohol-based disinfection, and UV sterilization.
Color-coded plungers make it easy to identify different pipette specifications.
Universal compatibility with most standard pipette tips on the market.
Equipped with Servicebio pipette tips to ensure superior airtightness and precise volume delivery.
Calibrated to EN/ISO 8655 standards, with rigorous quality control to guarantee high accuracy and reliability for every Servicebio pipette.
Single-channel models: Available in 0.1–2.5 μL, 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 20–200 μL, 100–1000 μL, 1000–5000 μL, and 1–10 mL ranges. Multi-color range markers; 10 volume options available.
Multi-channel models: Available in 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 50–300 μL, and 100–1000 μL ranges; 6 volume options available.
Lightweight and ergonomic design provides comfortable handling and easy operation. The light spring mechanism minimizes hand fatigue and allows effortless pipetting.
Clear digital display shows the selected volume directly on the handle for easy and accurate adjustment.
Durable construction made from high-strength materials with excellent resistance to corrosion, alcohol-based disinfection, and UV sterilization.
Color-coded plungers make it easy to identify different pipette specifications.
Universal compatibility with most standard pipette tips on the market.
Equipped with Servicebio pipette tips to ensure superior airtightness and precise volume delivery.
Calibrated to EN/ISO 8655 standards, with rigorous quality control to guarantee high accuracy and reliability for every Servicebio pipette.
Product Features

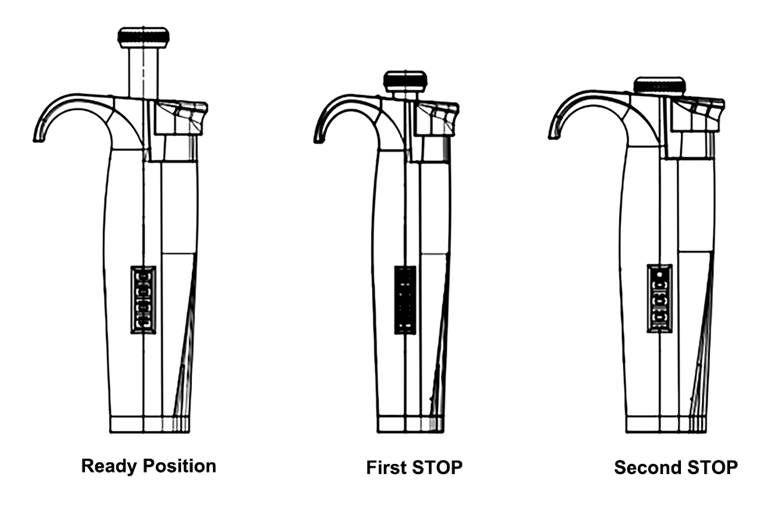

Pipette Operation
Forward Pipetting Technique (for low-density liquids):
Reverse Pipetting Technique (for high-viscosity or volatile liquids):
Forward Pipetting Technique (for low-density liquids):
- Press the push button to the first stop.
- Slowly release the button to the ready position to aspirate the liquid.
- To dispense, gently press the push button to the first stop. After a brief pause of about one second, continue pressing to the second stop to fully expel any remaining liquid from the tip.
- Release the push button to the ready position. If needed, change the tip and continue pipetting.
Reverse Pipetting Technique (for high-viscosity or volatile liquids):
- Fully depress the push button to the second stop to aspirate the liquid, then slowly release it to the ready position to complete aspiration. This draws slightly more than the preset volume.
- Press the button to the first stop to dispense the preset volume of liquid.
- The residual liquid remaining in the tip should be discarded along with the tip.
Pipette Operation
Calibration and Adjustment

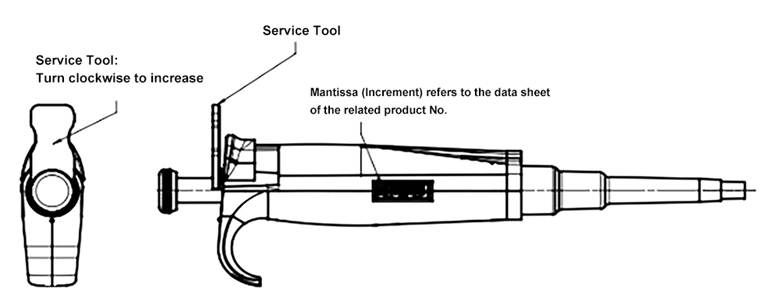

Use the provided service tool as shown in the diagram. To adjust the volume, turn the tool clockwise to increase or counterclockwise to decrease the setting.
It is recommended to calibrate the pipette 1–2 times per year, depending on the frequency and intensity of use.
Use the provided service tool as shown in the diagram. To adjust the volume, turn the tool clockwise to increase or counterclockwise to decrease the setting.
It is recommended to calibrate the pipette 1–2 times per year, depending on the frequency and intensity of use.
Calibration and Adjustment
Storage and Transportation
Store and transport the pipette at room temperature.
Notice
Store and transport the pipette at room temperature.
Notice
- Before liquid handling, ensure that the pipette and tips are at the same temperature. Hold the pipette upright while aspirating and immerse the tip 2–3 mm below the liquid surface. Pre-rinse the tip by aspirating and dispensing the liquid several times to moisten the inner wall—especially when working with viscous liquids or those with densities different from water.
- If the tip contains liquid, do not turn the pipette upside down or lay it flat, as this may cause liquid to enter the interior mechanism. It is recommended to place the pipette on a dedicated pipette stand when not in use.
- Always operate the pipette within its specified volume range.
- If the pipette will not be used for an extended period, apply special maintenance oil to the sealing ring for protection.
- For disassembly or internal maintenance, please contact a qualified service technician.
